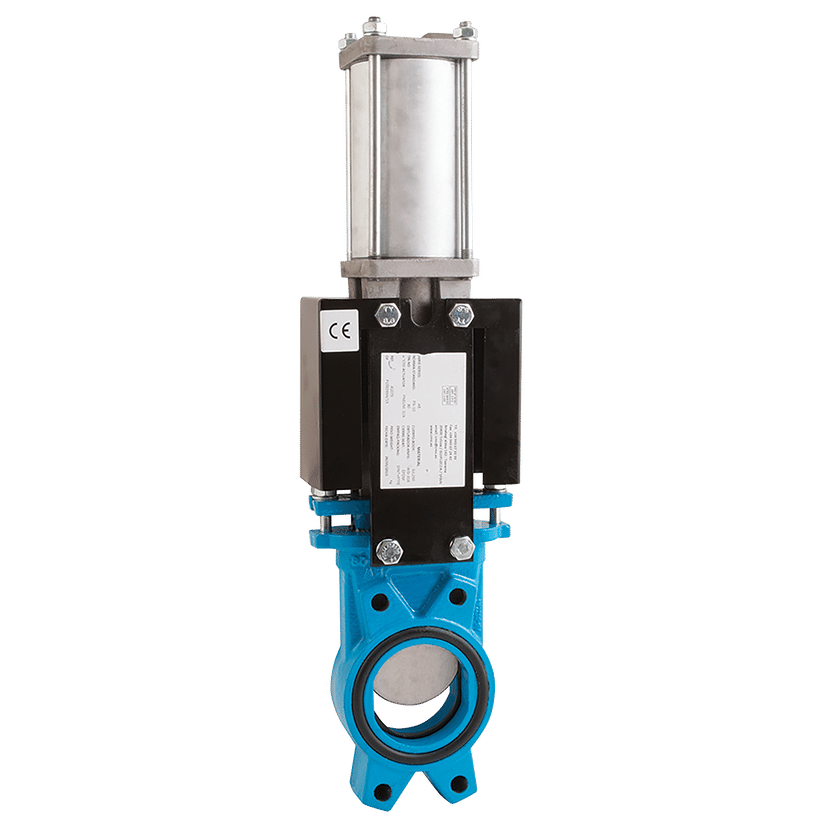

FT Pro 10" PN10 KGV 304SS/EPDM Bidirectional Double Acting
Product Code: AB1N2H2 18
...
Available to Order
Details
Valve Material
Cast Iron
Design
Bidirectional
End Connection
Flanged PN10
Approvals
ATEX
Valve Working Temperature
0°C to +90°C
To Suit Flanges
PN10
Size
10
Function
Double Acting
Brand
FT Pro
Seal Material
EPDM
Valve Working Pressure bar
6
Specification
10" PN10 Flange, Bidirectional Knife Gate Valve Fitted with a Double Acting Pneumatic Cylinder, Atex Approved, Cast Iron Valve Material, EPDM Seal Material, Working Temperature 0°C to +90°C, Maximum Working Pressure 6 bar, FT Pro
Features: To suit PN10/16 flanges up to 6". 8" upwards available to suit either PN10 or PN16 flanges. Available in cast iron body, 304 stainless steel blade and EPDM seat or CF8M stainless steel CF8M body, 316 stainless steel blade and EPDM seat. Bidirectional wafer design. ATEX II 3GD T3 certification. Provides high flow rates with low pressure drop. Suitable for liquids that contain a maximum of 4% suspended solids. Designed for applications including paper industry, mining, silo emptying, chemical plants, pumping, food industry and sewage treatment. Other sizes or flange dimensions are available on request. Pressure Equipment Directive: DIR 97/23/EC (PED) Art. 4.3, Cat. 1
Additional Variants
Product Name
Product Code
End Connection
Valve Working Pressure bar
To Suit Flanges
Size
Buy Price
Flanged PN10, Flanged PN16
10
PN10, PN16
3"
£698.88
Immediately Available - 1 in stock
Flanged PN10, Flanged PN16
10
PN10, PN16
2"
£499.00
Available to Order
Flanged PN10, Flanged PN16
10
PN10, PN16
4"
£704.85
Available to Order
Flanged PN10
8
PN10
8"
£1,468.48
Available to Order
Flanged PN10, Flanged PN16
10
PN10, PN16
5"
£918.32
Available to Order
Flanged PN10, Flanged PN16
10
PN10, PN16
2.1/2"
£541.44
Immediately Available - 1 in stock
Flanged PN10
6
PN10
12"
£2,525.60
Available to Order
Flanged PN10, Flanged PN16
10
PN10, PN16
6"
£981.76
Available to Order
