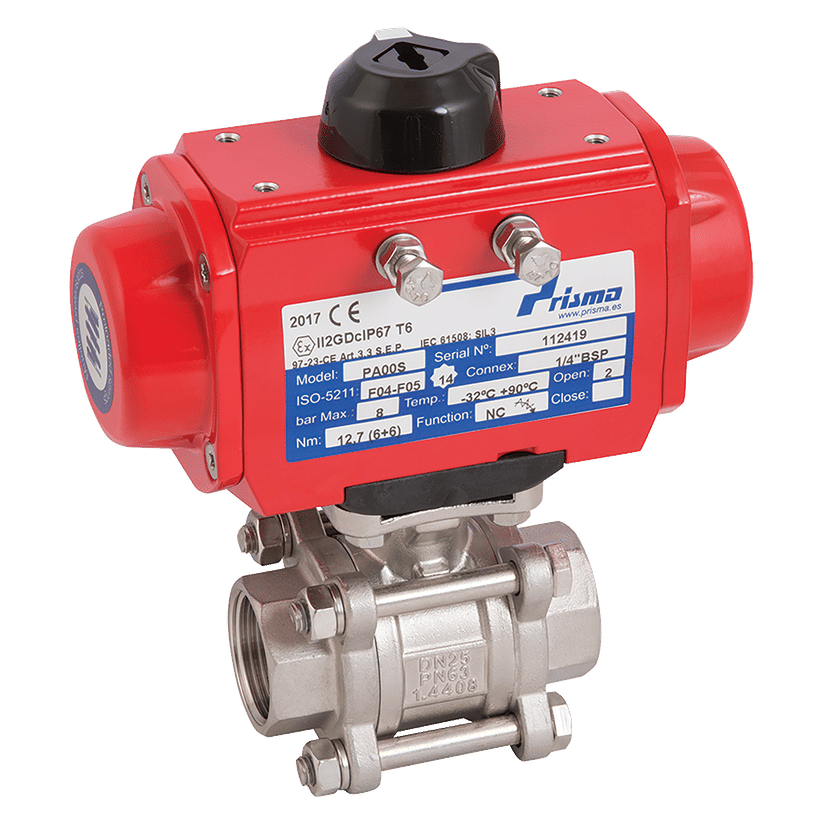

Haitima 2" BSP SS 3PC Full Bore Ball Valve F/W PRISMA SA Actuator
Product Code: SA 2013ND-2...
Available to Order
Details
Size
2"
Function
Single Acting
Valve Material
Stainless Steel
Approvals
ATEX
Actuator Working Temperature
-32°C to +80°C
End Connection
BSPP
Seal Material
Viton
Valve Working Temperature
-20°C to +200°C
Brand
Haitima
Design
3 Piece
Valve Working Pressure bar
63
Specification
2" BSP Parallel, 3 Piece Full Bore Ball Valve Fitted with a Pneumatic Actuator, Single Acting, ATEX Approved, Stainless Steel Valve Material, Viton Seal Material, Valve Working Temperature -20°C to +200°C, Actuator Working Temperature -32°C to +80°C, Valve Maximum Working Pressure 63 bar, Prisma, Haitima
Features: Stainless steel full bore direct mount ball valve. Available in BSPP, NPT, butt weld nominal bore or socket weld ends. ATEX II 2G Ex h IIB T6 Gb / II 2D Ex h IIIC T80°C Db certification. Prisma aluminium pneumatic actuator. Sized based on 10 bar pilot air and wet non-abrasive duty at +90°C.
Additional Variants
Product Name
Product Code
Size
Buy Price
3"
Available to Order
1.1/2"
Available to Order
3/8"
Available to Order
3/4"
Available to Order
4"
Available to Order
1"
Available to Order
1/4"
Available to Order
1.1/4"
Available to Order
2.1/2"
Available to Order
1/2"
Available to Order
