Festo VZXF-L-M22C-M-B-G2-450-M1-V4ANT-80-5
Product Code: 3540277Manufacturer Code: VZXF-L-M22C-M-B-G2-450-M1-V4ANT-80-5
...
Available to Order
Details
Working Pressure bar
6 to 10
Micron
200
Flow LPM
42900
Working Temperature
-40°C to +200°C
Seal Material
PTFE
Thread Type
BSPP
Thread Gender
Female
Thread Size
2"
Material
Cast Stainless Steel
Function
2 Way Normally Closed
Nominal Bore mm
45
Brand
Festo
Specification

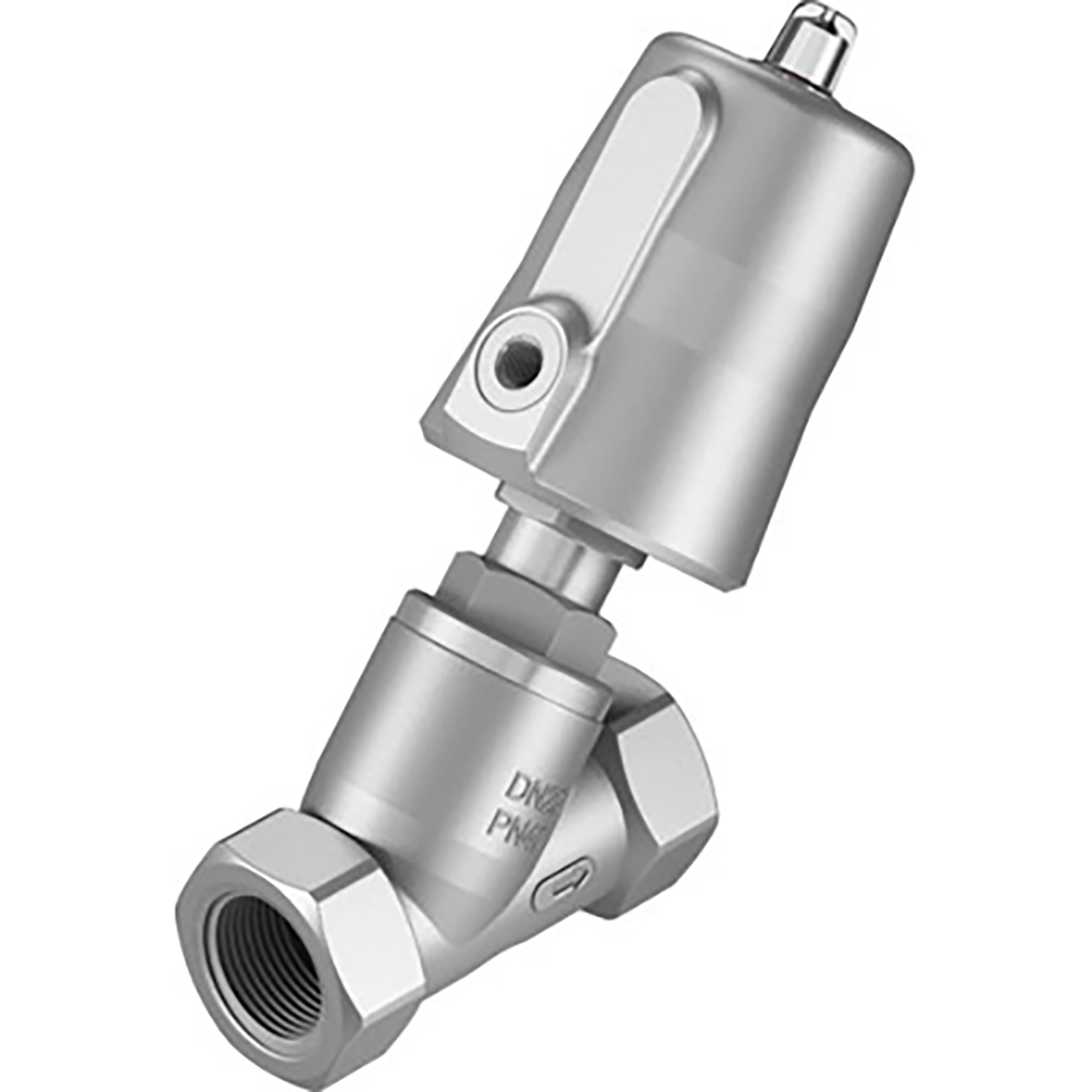

Angle Seat Valve Vzxf-L-M22C-M-B-G2-450-M1-V4Ant-80-5 Pneumatically Actuated Angle Seat Valve In Stainless Steel. Under Seat Version, Safety Position Closed, G Thread, Nominal Width 2". Design Structure=Poppet Valve with Piston Actuator, Type of Actuation=Pneumatic, Sealing Principle=Soft, Assembly Position=Any, Mounting Type=Line Installation, Festo
Additional Variants
Product Name
Product Code
Thread Size
Flow LPM
Nominal Bore mm
Buy Price
1.1/4"
19250
31
£576.73
Available to Order
1.1/2"
30800
35
£598.18
Available to Order
1"
13200
24
£486.22
Available to Order
