Festo VZBA-3/8"-WW-63-T-22-F0304-V4V4T-PS15-R
Product Code: 1774104Manufacturer Code: VZBA-3/8"-WW-63-T-22-F0304-V4V4T-PS15-R-90-4-C
...
Available to Order
Details
Flow LPM
11000
Working Temperature
-10°C to +200°C
Function
2 Way
Seal Material
PTFE/PTFE- Reinforced
Material
Stainless Steel
Nominal Bore mm
10
Working Pressure bar
6 to 8.4
Brand
Festo
Specification

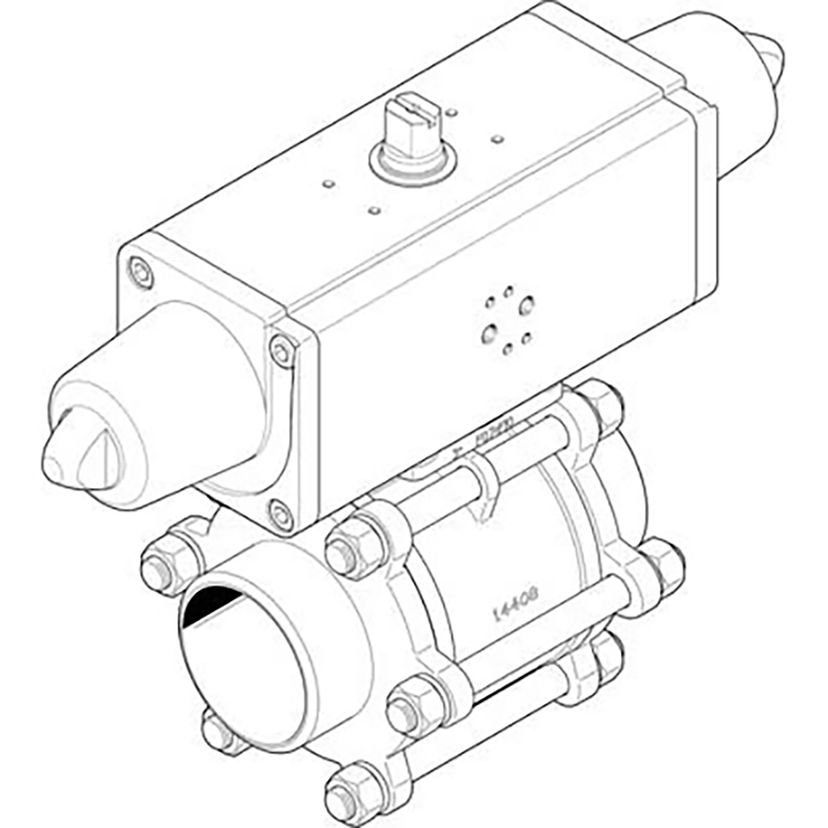

Ball Valve Actuator Unit Vzba-3/8"-Ww-63-T-22-F0304-V4V4T-Ps15-R- Stainless Steel, with Single-Acting Actuator Daps 2/2-Way, Nominal Width 3/8", Pn63, Welded End. Design Structure=(* 2-Way Ball Valve, * Swivel Drive), Type of Actuation=Pneumatic, Assembly Position=Any, Mounting Type=Line Installation, Process Valve Connection=Weld-On Ends/Weld-On Ends, Festo
Additional Variants
Product Name
Product Code
Flow LPM
Nominal Bore mm
Buy Price
995500
80
£1,745.65
Available to Order
21340
15
£311.53
Available to Order
115500
32
£506.84
Available to Order
187000
40
£579.38
Available to Order
50160
20
£371.39
Available to Order
302500
50
£823.46
Available to Order
78650
25
£414.62
Available to Order
1555400
100
£2,480.17
Available to Order
557700
65
£1,306.76
Available to Order
7700
8
£309.42
Available to Order
