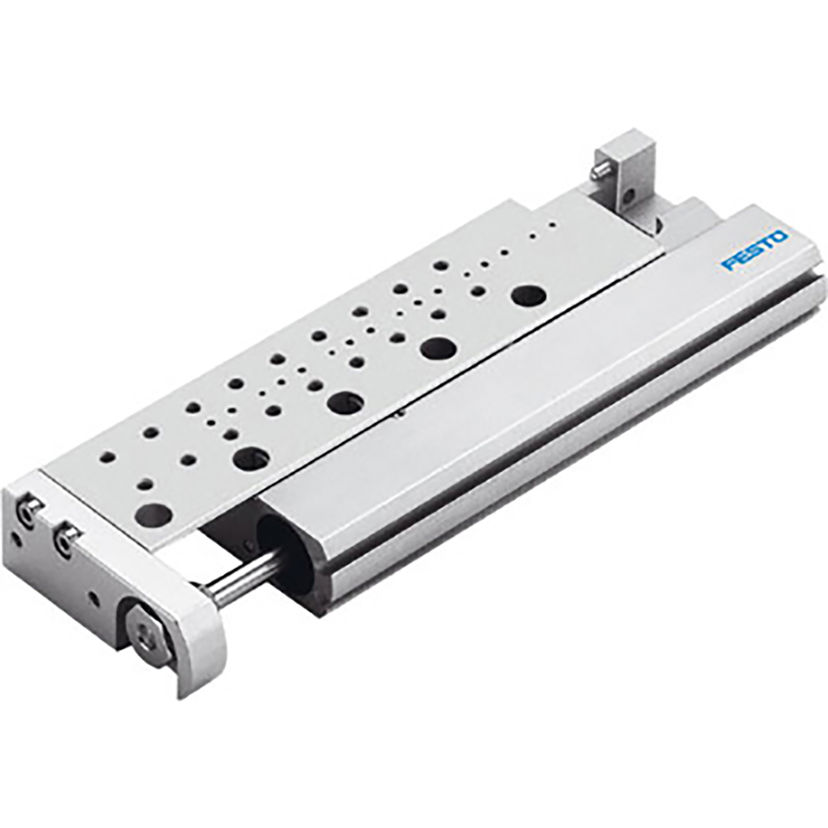

Festo M5 Metric Mini Slide
Product Code: 170511Manufacturer Code: SLF-16-10-P-A
...
Available to Order
Details
Piston Rod Material
Stainless Steel
Working Pressure bar
1 to 10
Barrel Material
Wrought Aluminium Alloy
Thread Size
M5
Thread Type
Metric
Magnetic
Y
Seal Material
Nitrile
Stroke Length mm
10
Bore Size mm
16
Working Temperature
-20°C to +60°C
Cushioning
Pad Cushioning
Brand
Festo
Specification
Mini Slide Slf-16-10-P-A Flat Design with Precision Ball-Bearing Guide and Adjustable End Stops. Stroke=10 Mm, Adjustable End-Position Range/Length=5 Mm, Piston Diameter=16 Mm, Operating Mode of Drive Unit=Yoke, Cushioning=P: Flexible Cushioning Rings/Plates at Both Ends, Festo
