M314-14105

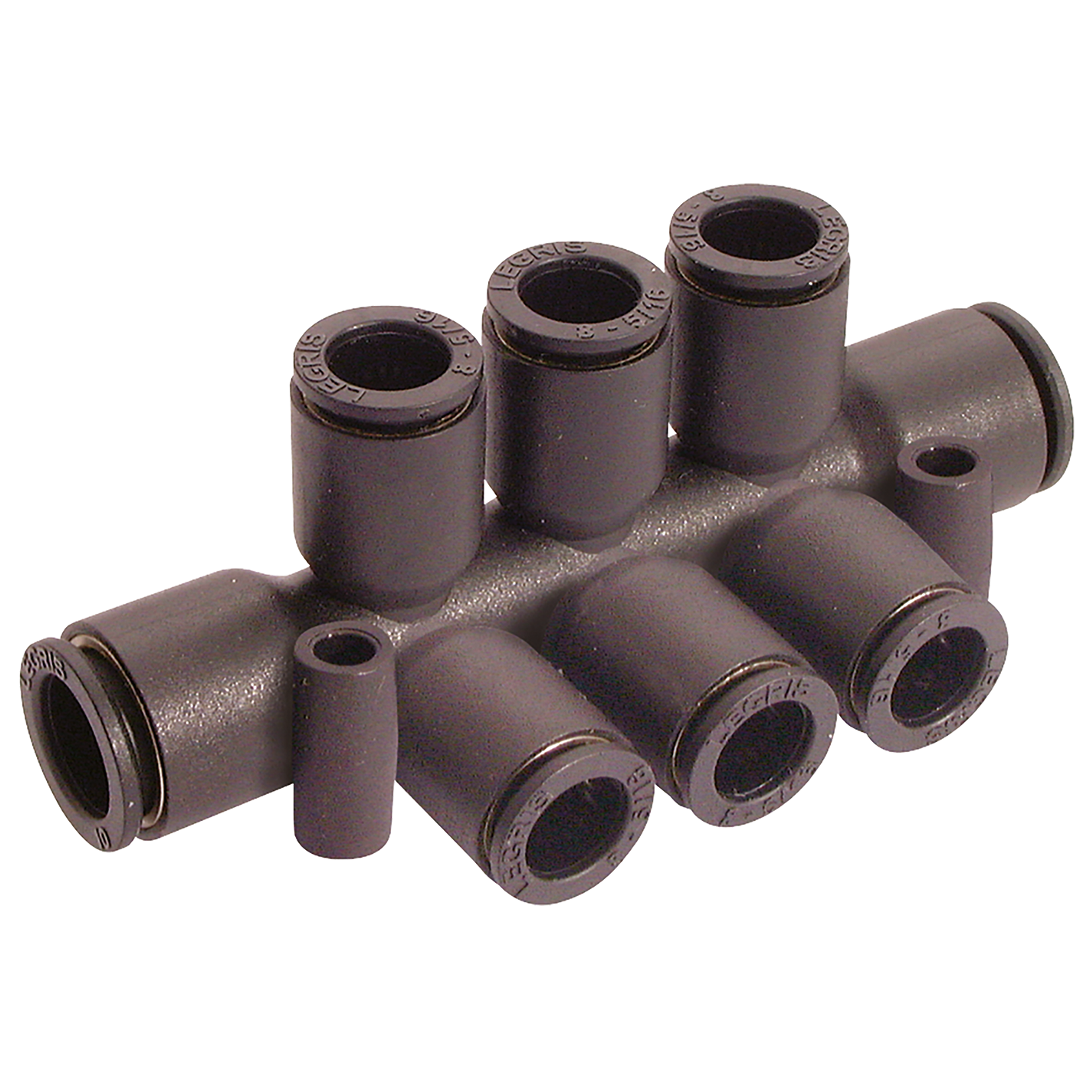

Parker Legris 10 X 8MM Unequal Multiple Elbow

Product Code: LE-3306 10 08



...

Immediately Available - 11 in stock

tech sheet 10626

Details

Brand
Parker Legris
Material
Plastic/Nickel Plated Brass
Series
LF3000
Outside Diameter A mm
10
Outside Diameter B mm
8
Maximum Working Pressure bar
20
Working Temperature
-20°C to +80°C

Specification

10mm Outside Diameter x 8mm Outside Diameter, LF3000 Metric Push-in Tube Fitting, Reducing Tube x Tube, 90° Twin Outlet Manifold, Plastic/Brass Nickel Plated, Working Temperature -20°C to +80°C, Maximum Working Pressure 20 bar, Parker Legris

Vacuum Capability: Vacuum of 755mm Hg (99% vacuum). Suitable Fluids: Compressed Air, LF 3000 can also be used for conveying various types of liquids (water, cutting oil, etc) for industrial applications. The working pressure, from 0.6-10 bar and temperatures from 0-60°C, are dependent upon the fluid conveyed and the type of O-Ring used. Silicone Free.

Additional Variants

Product Name
Product Code
Outside Diameter B mm
Outside Diameter A mm
Buy Price
M314-14105
6
10
£29.85

Available to Order

M314-14105
4
6
£22.29

Available to Order

M314-14105
6
8
£22.32

Available to Order

M314-14105
4
8
£19.26

Immediately Available - 2 in stock
