M314-14055

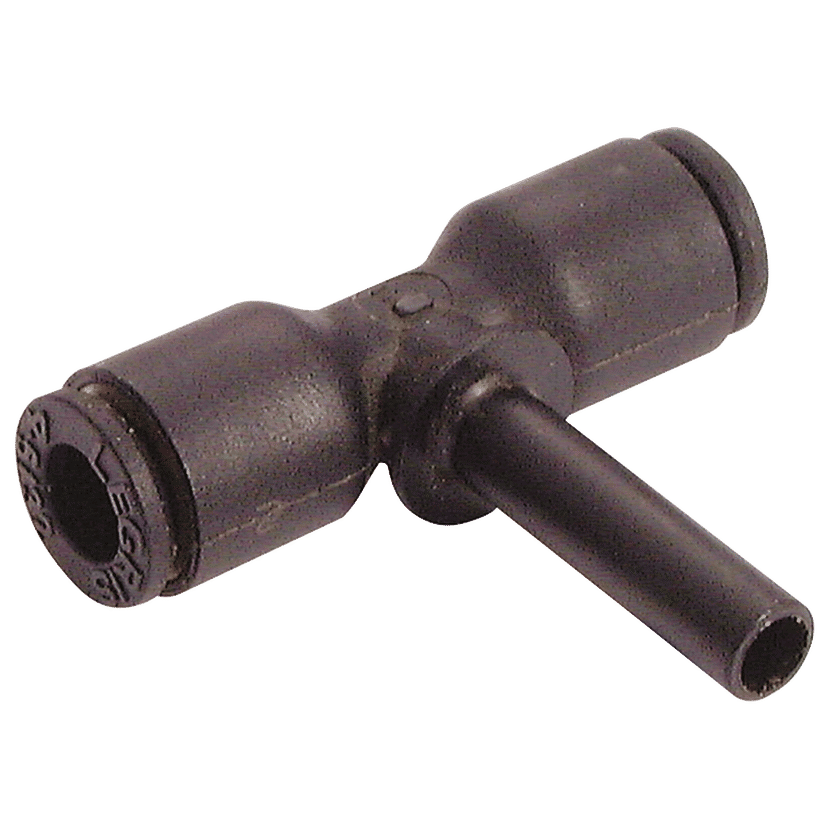

Parker Legris 4MM OD Tee

Product Code: LE-3188 04 00



...

Immediately Available - 5 in stock

tech sheet 10626

Details

Outside Diameter mm
4
Brand
Parker Legris
Material
Plastic
Series
LF3000
Maximum Working Pressure bar
20
Working Temperature
-20°C to +80°C

Specification

4mm Outside Diameter, Tee, Push Fitting, Plastic, Working Temperature -20°C to +80°C, Maximum Working Pressure 20 bar, Parker Legris

Vacuum Capability: Vacuum of 755mm Hg (99% vacuum). Suitable Fluids: Compressed Air, LF 3000 can also be used for conveying various types of liquids (water, cutting oil, etc) for industrial applications. The working pressure, from 0.6-10 bar and temperatures from 0-60°C, are dependent upon the fluid conveyed and the type of O-Ring used. Silicone Free.

Additional Variants

Product Name
Product Code
Outside Diameter mm
Material
Buy Price
M314-14055
8
Plastic/Brass Nickel Plated
£6.69

Immediately Available - 2 in stock

M314-14055
6
Plastic/Brass Nickel Plated
£6.60

Immediately Available - 2 in stock
