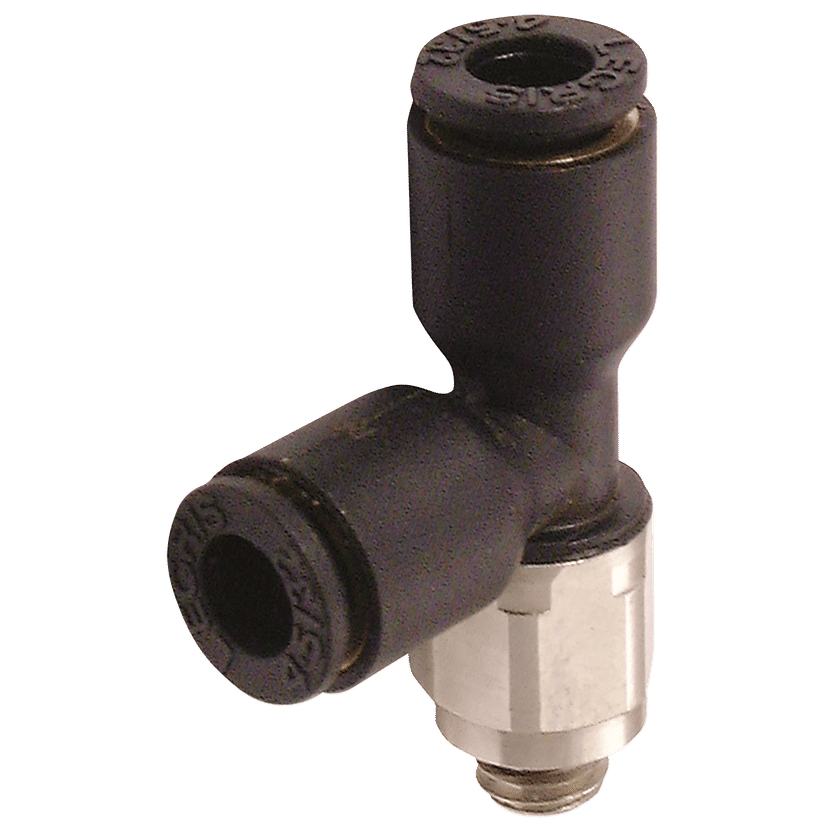

Parker Legris 4MM X 1/8" Male Stud Run Tee
Product Code: LE-3193 04 10
...
Immediately Available - 12 in stock
tech sheet 10626
Details
Outside Diameter mm
4
Brand
Parker Legris
Thread Type
BSPP
Thread Size
1/8"
Series
LF3000
Maximum Working Pressure bar
20
Material
Plastic/Brass Nickel Plated
Working Temperature
-20°C to +80°C
Thread Gender
Male
Specification
1/8" BSP Parallel Male x 4mm Outside Diameter, LF3000 Metric Push-in Tube Fitting, Stud Run Tee, Plastic/Brass Nickel Plated, Working Temperature -20°C to +80°C, Maximum Working Pressure 20 bar, Parker Legris
Vacuum Capability: Vacuum of 755mm Hg (99% vacuum). Suitable Fluids: Compressed Air, LF 3000 can also be used for conveying various types of liquids (water, cutting oil, etc) for industrial applications. The working pressure, from 0.6-10 bar and temperatures from 0-60°C, are dependent upon the fluid conveyed and the type of O-Ring used. Silicone Free.
Additional Variants
Product Name
Product Code
Outside Diameter mm
Thread Size
Thread Type
Buy Price
12
3/8"
BSPP
£18.99
Available to Order
8
1/8"
BSPP
£9.60
Immediately Available - 7 in stock
8
3/8"
BSPP
£10.35
Immediately Available - 8 in stock
4
M5 x 0.8
Metric
£8.60
Immediately Available - 4 in stock
6
M5 x 0.8
Metric
£9.51
Available to Order
6
1/8"
BSPP
£7.92
Immediately Available - 4 in stock
10
1/4"
BSPP
£14.37
Available to Order
14
1/2"
BSPP
£19.83
Immediately Available - 2 in stock
