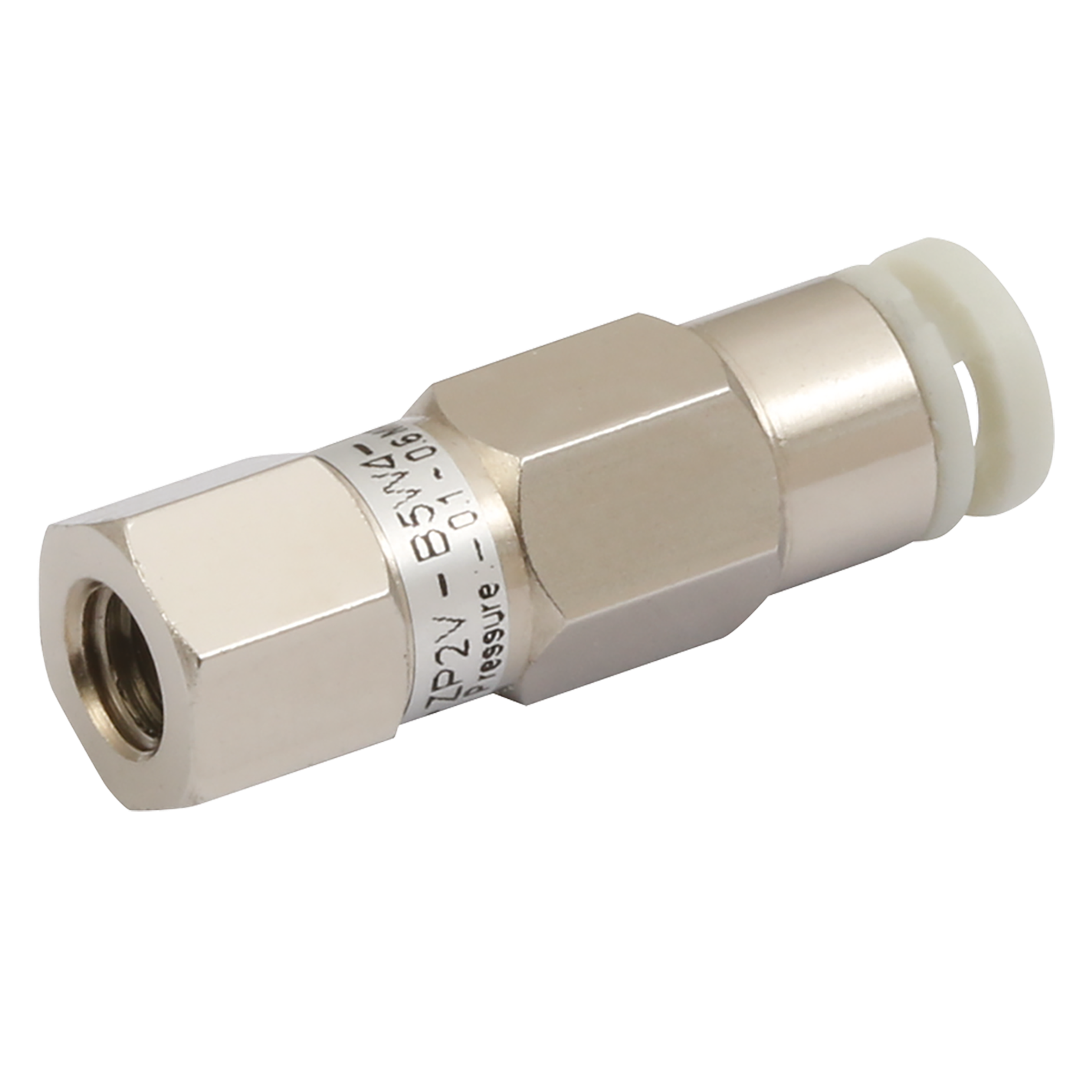

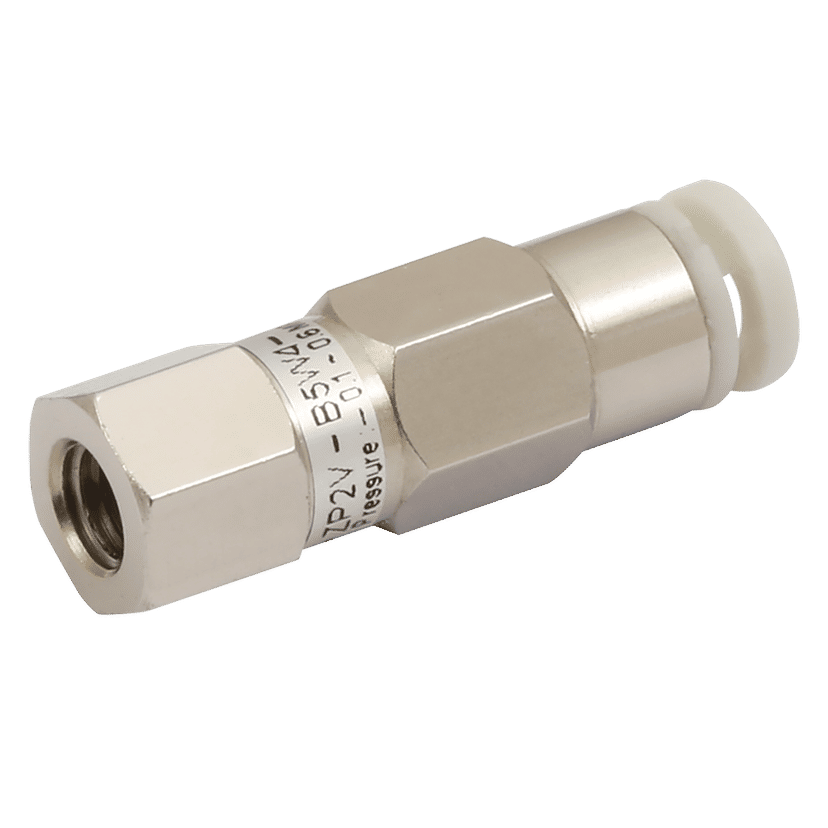

FT Pro Vacuum Save Valve Female 1/8BSPTX6MM ORIF 1.0MM
Product Code: KZP2V-B01W6-10
...
Available to Order
tech sheet 10692
Details
Maximum Working Pressure bar
7
Thread Gender
Female
Outside Diameter mm
6
Thread Size
1/8"
Brand
FT Pro
Working Temperature
+5°C to +60°C
Thread Type
BSPT
Orifice mm
1
Specification
1/8" BSP Tapered Female x 6mm Outside Diameter, Vacuum Saving Valve, KZP2V Female Thread to Pad/Push in to Generator, 1.0 Orifice, Working Temperature +5°C to +60°C, Maximum Pressure 7 bar, FT Pro
Avoids the loss of pressure when there is no work piece for the vacuum cup. No need for the use of sensors when the work pieces are of different sizes, which simplifies the circuit.
Additional Variants
Product Name
Product Code
Orifice mm
Outside Diameter mm
Thread Size
Thread Type
Buy Price
0.7
6
1/8"
BSPT
£21.26
Available to Order
0.7
4
M5 x 0.8
Metric
£19.31
Available to Order
