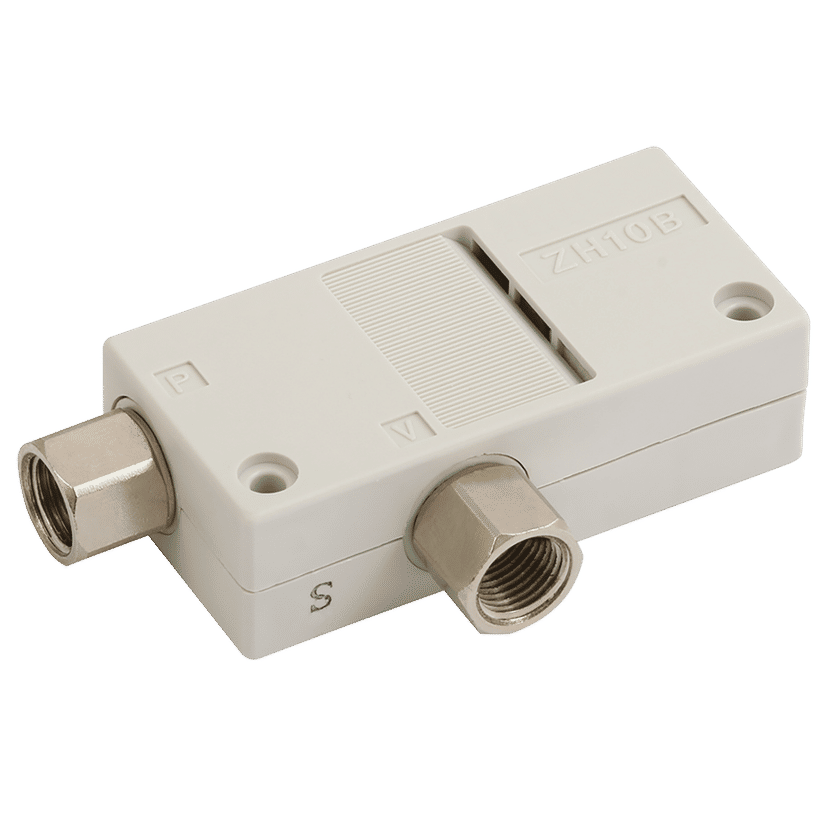

FT Pro Vacuum EJEC 1.0MM HV 1/8X1/8" BSPP
Product Code: KZH10BS-01-01
...
Available to Order
tech sheet 10687
Details
LPM at Set bar
24 at 4.5
Maximum Vacuum bar
88
Air Consumption LPM
46
Thread Size A
1/8"
Thread Size
1/8"
Supply Pressure bar
4.5
Brand
FT Pro
Specification
1/8" Supply Outside Diameter x 1/8" Exhaust Outside Diameter, KZH Box with Built in Silencer, High Vacuum, Vacuum Ejector, 24 Litres per Minute at 4.5 bar, Air Consumption 46 Litres per Minute, Maximum Vacuum Pressure 88 Kilopascal, Supply Pressure 4.5 bar, FT Pro
Available in both standard and low vacuum pressure options. Threaded port or One Touch Push-in ports. Box or In-line design. Built-in silencer with box design. Compact. Choice of 7 nozzle sizes. Lightweight. Mounting holes for easy fixing on machinery. Supply Pressure bar: 4.5
