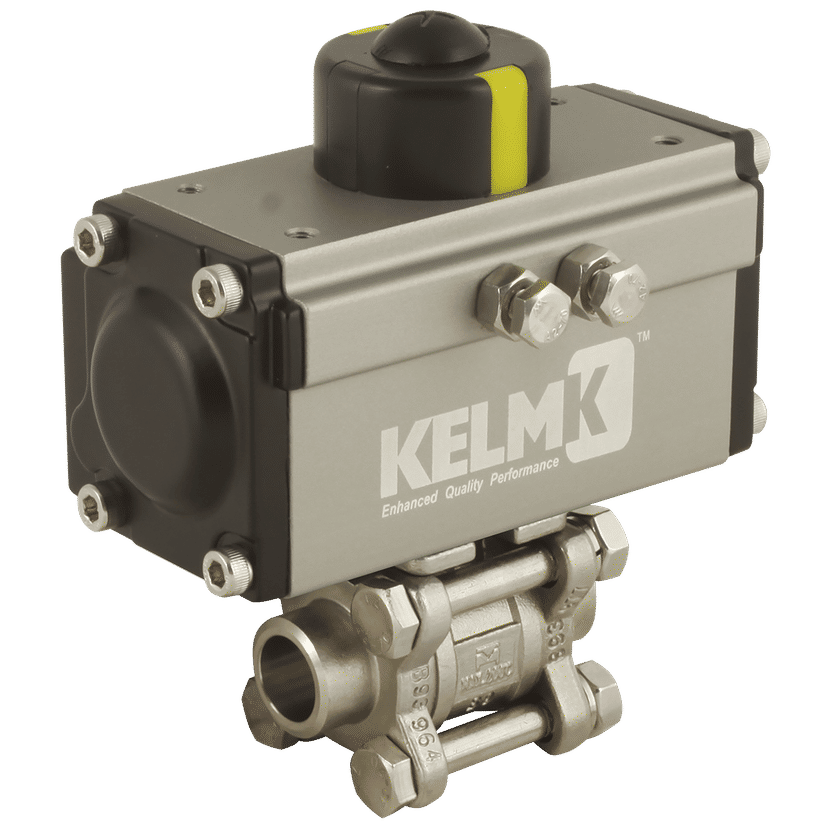

FT Pro 2" B.WELD SS 3 Pc DA Aluminium ACTU B.VALVE
Product Code: 2184-0093
...
Available to Order
tech sheet 10155
Details
Maximum Working Pressure bar
70
Ball Valve
Full Bore
Actuator Material
Aluminium
Body Material
Stainless Steel
Brand
FT Pro
Working Temperature
-20°C to +200°C
Travel Adjustment
±5° on the rotation 0° and 90°
Body Size Inch
2"
Specification
2" Body, Double Acting 3 Piece, Stainless Steel Butt Weld, Actuated Ball Valve, Travel Adjustment ±5° on the Rotation 0° and 90° Standard, Stainless Steel Body, Aluminium Actuator, Ball Valve Temperature -20°C to +200°C, Ball Valve Pressure 70 bar, FT Pro
Actuator. Media: Dry or lubricated compressed air, to be filtered by a 30µm filter element. Travel Adjustment: [U]+[U]5° on the rotation 0° and 90°. Ball Valve. Full bore.
Additional Variants
Product Name
Product Code
Body Size Inch
Buy Price
1.1/2"
£599.49
Available to Order
1/4"
£231.73
Available to Order
1"
£342.17
Available to Order
1.1/4"
£452.28
Available to Order
3/8"
£231.73
Available to Order
4"
£2,294.96
Available to Order
3/4"
£263.52
Available to Order
1/2"
£212.37
Available to Order
2.1/2"
£1,211.75
Available to Order
3"
£1,667.64
Available to Order
