Details
Outside Diameter mm
4
Material
Brass Nickel Plated
Maximum Working Pressure bar
8
Brand
FT Pro
Series
One Touch All Metal
Working Temperature
-10°C to +60°C
Specification

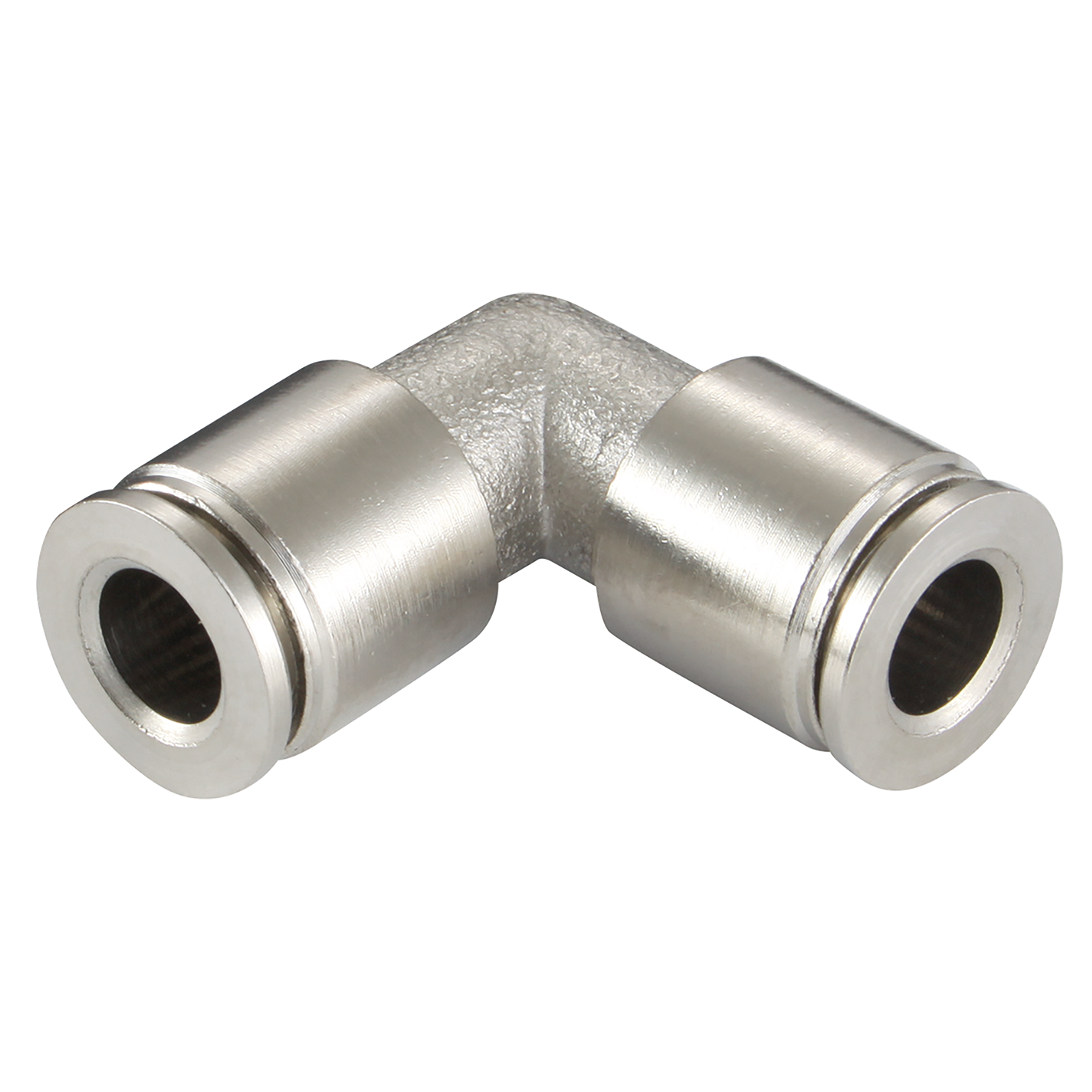

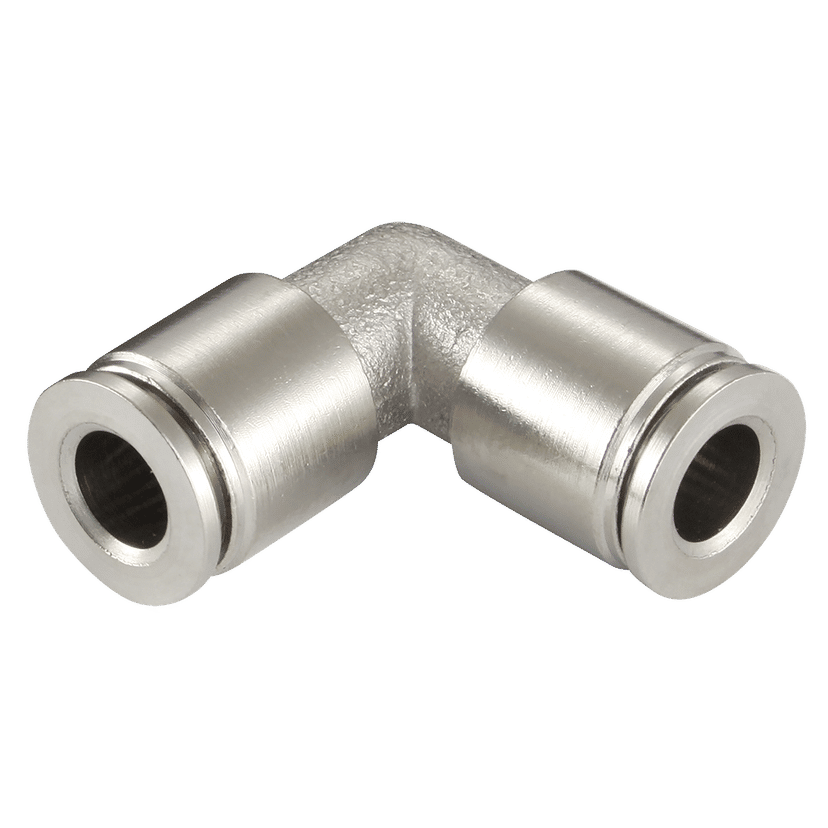

4mm Outside Diameter, Pneumatic One Touch All Metal Push-in Metric Tube Fitting, Equal, 90° Elbow Connector, Brass Nickel Plated, Working Temperature -10°C to +60°C, Maximum Working Pressure 8 bar, FT Pro
Tube connection and disconnection can be repeated several times and is performed with one hand, without the use of tools. Nickel-plated brass bodies ensures anti-corrosion and anti-contamination. Material: Body & Collet: Nickel plated brass. O-Ring: Nitrile. Threads: BSPT, BSPP & Metric. Tube to Connect: PU, PE, Nylon 6-11-12. Fluid: Compressed air.
