FT Pro 3/4" 1 Wire Compact Hydraulic Hose EN857-1SC
Product Code: 1SC-12-100
...
Immediately Available - 2 in stock
tech sheet 5003
Details
Standard
EN857-1SC
Inside Diameter Inch
3/4"
Series
Steel Braided
Outside Diameter mm
26.7
Colour
Black
Compact
YES
Maximum Working Pressure bar
105
Length Metres
100
Brand
FT Pro
Hose Diameter (DN)
26.7
Working Temperature
-40°C to +100°C
Material
Synthetic Rubber
Bend Radius mm
180
Specification
26.7mm Outside Diameter x 3/4" Inside Diameter, Hydraulic Hose, 1 Wire Compact, 1SC, 100 Metre Coil, 180mm Bend Radius, Black, Synthetic Rubber, Wire Braid, EN857-1SC, Bursting Pressure 420 bar, Working Temperature -40°C to +100°C, Maximum Working Pressure 105 bar, FT Pro

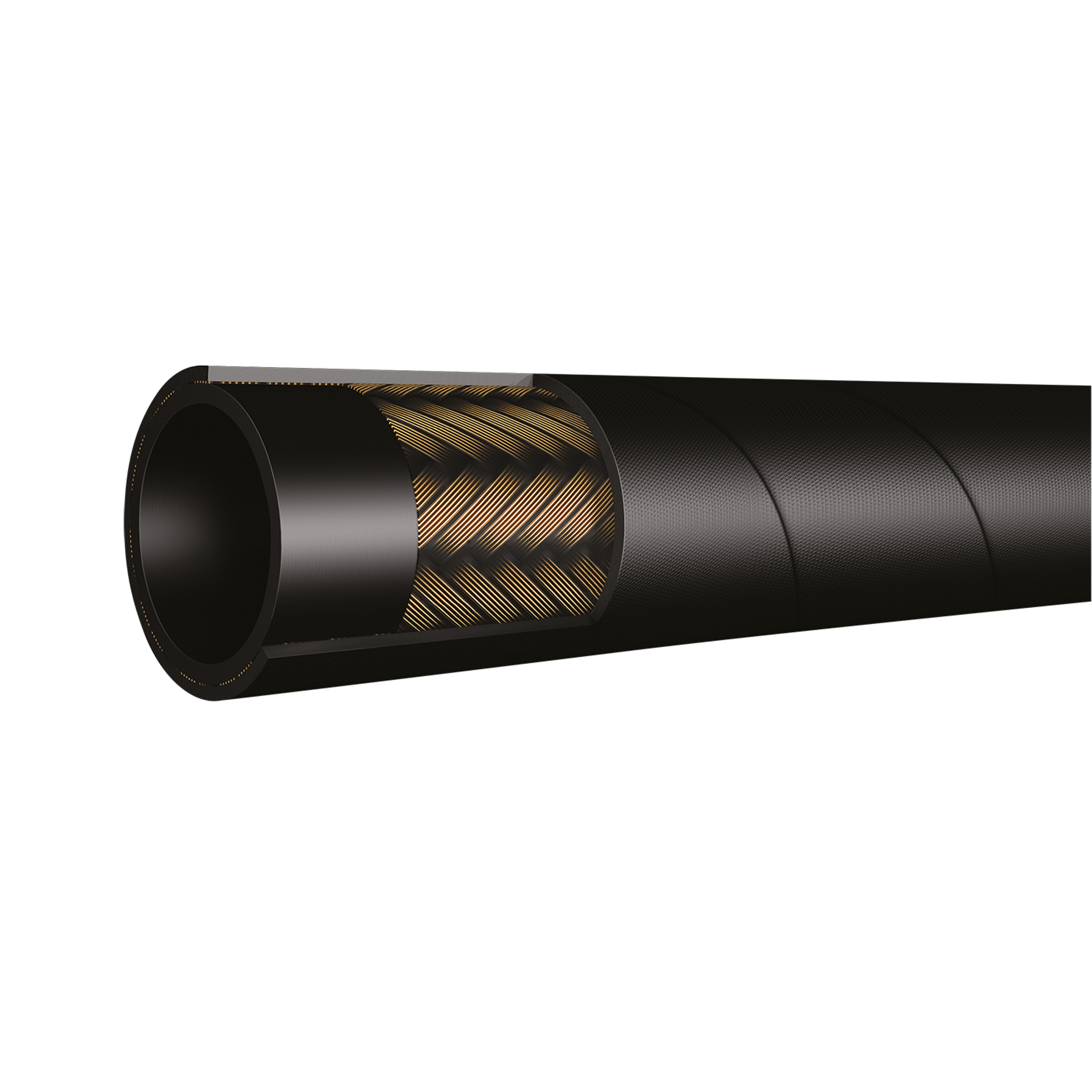

Application: Medium pressure hydraulic applications were space contraints and greater flexibilty is required. Specification: EN857 - 1SC. Construction: Inner tube: Oil resistant synthetic rubber (Nitrile). Reinforcement: 1 single steel wire braid. Outer coverr: oil and weather resistant synthetic rubber. Recommended fluids: Hose suitable for petroleum based hydraulic oil and water-glycol based fluids, air and water. NB: For air above 17 bar, the hose coverr must be pin-pricked. Available per metre. Smooth coverr available on request
Additional Variants
Product Name
Product Code
Inside Diameter Inch
Outside Diameter mm
Bend Radius mm
Maximum Working Pressure bar
Hose Diameter (DN)
Buy Price
1/2"
20.4
130
160
20.4
£634.36
Available to Order
1/4"
13.5
75
225
13.5
£410.73
Immediately Available - 5 in stock
3/8"
16.9
90
180
16.9
£543.09
Immediately Available - 7 in stock
